How to Read Guitar Tabs

- Play songs quickly and easily with guitar tab -

Guitar Tablature or TAB is the most common method of writing out music for the guitar. It is different from classical music notation in that, TAB uses ordinary numbers and keyboard characters as opposed to standard musical notation which uses symbols. Because of this format, anyone with a computer can write or read TAB making it the most user friendly way to read and communicate guitar music. Also TAB relates directly to the fret board of your guitar, meaning that you may easily see where you put your fingers.

Guitar Tablature is very easy to read and you should have no problems learning TAB in a few short minutes of reading.

TAB has some weak points, the worst of which is that rhythm can't be easily indicated. This shouldn't pose a problem though, as I will indicate the rhythm for each exercise using the strum indicators that were introduced in lesson one.

OK. To start I want you to look at your guitar and you will clearly see that it has six strings going from thickest to thinniest. On a TAB diagram, the thinnest string, (or 1st string as its most commonly called) is at the top - The thickest (or 6th string) is at the bottom. This is clearly demonstrated in the 1st example below.

The following diagram shows you how tablature relates to the guitar fret board:

Fretboard

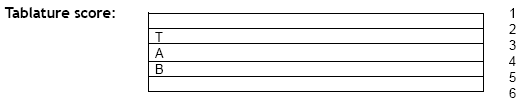

Some of you may notice that this guitar seems upside down in relation to how you play. This is simply the way that guitar music is generally written. Now if you transfer this same model to a written format you will get TAB, which can be seen below.

tabscore

So the lines above indicate the strings on a guitar. The top line of the TAB being the thinnest string of the guitar, and the bottom line on the TAB chart indicating the thickest string of the guitar. Now if you look at your guitar you will see metal bars that raise up from the neck of the guitar called frets. TAB uses numbers to show you which one of these frets to press down and play.

For example, look at the tab diagram to the right and you can see that the 1st string (thinnest string) is being played. The number refers to the fret that you should press down. In this case the number zero is displayed. This means that you shouldn’t press down anything.
open 1st string

So if you were to play the above piece of TAB on your guitar, you would pick the thinnest string once with your plucking hand and do nothing with your fret hand.

Now let's see if we can start pushing down some strings. Look at the next example below and try and play the note that the TAB chart displays.

3rd fret, 6th string

If you pressed down the thickest string at the 3rd fret then you played the exercise correctly. If you are still unsure whether you are doing the right thing or not, refer to the video below.

Let's try another one. Play the following piece of TAB:

C Note

This TAB diagram above indicates the 2nd string (second thinnest) and you should be pressing down on the first fret.

Things become a little more complicated when you are required to play chords, however the basic principals I have already outlined still apply. The only difference is that you will be required to play more strings and hold down more strings with your fingers. In this next example I will show you how to play the chord ‘A’.

Reading Chords - A Major Chord

A Major

The first and fifth strings are played open while the second, third and forth strings are played at the second fret. The sixth string is not played in the A Major Chord and this is indicated by an X.

If you have read the TAB correctly your fingers should look like this:

A Major Chord



So now you know how to use basic tablature as it applies to notes and full chords. In this introductory set of lessons you will use TAB to learn different chords and by lesson six you will be able to play the full song, "Rivers of Babylon".

Next you are about to learn about notes on the first string.


Notes on the First String

Knowledge of the notes that are on each string is necessary for understanding guitar theory. The first string is also known as the high E string. The main notes in the first position on the first string are E (open), F (1st fret) and G (3rd fret). The first position refers to the first 4 frets of the guitar.

first string

We will use these notes in the following exercise to introduce to you the concept of note picking.

Exercise:
Note picking is a skill that is used in all types of music. For now, we will use it to familiarize ourselves with the note names on each string in the first position. Pluck these first string notes with a downward picking motion. Notice that your fingers should match the fret number when playing in the first position:

Notes on the 1st String
